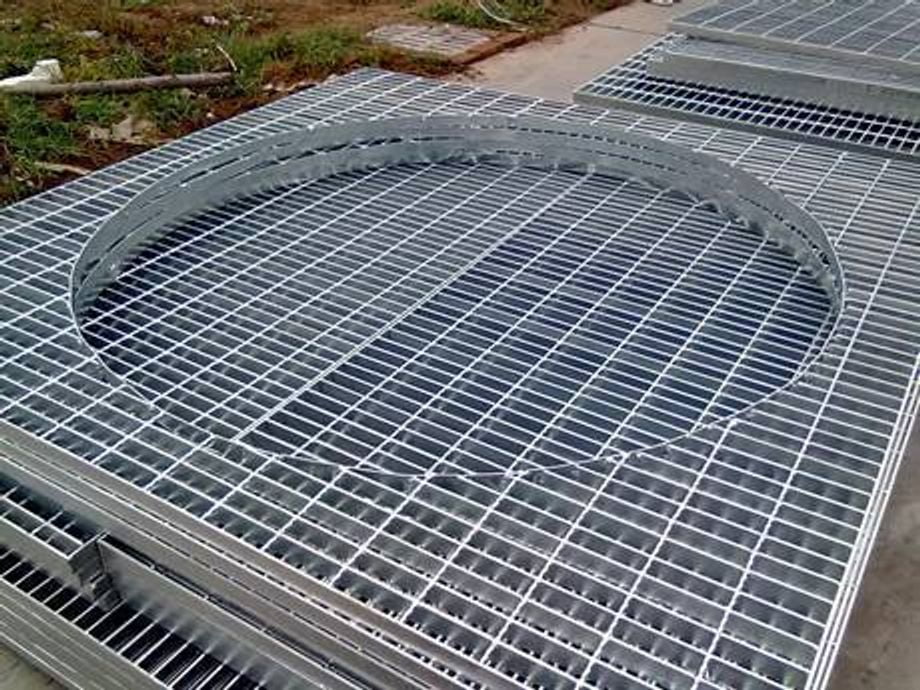

Special Shaped Steel Grating for Unique Applications and Custom Designs

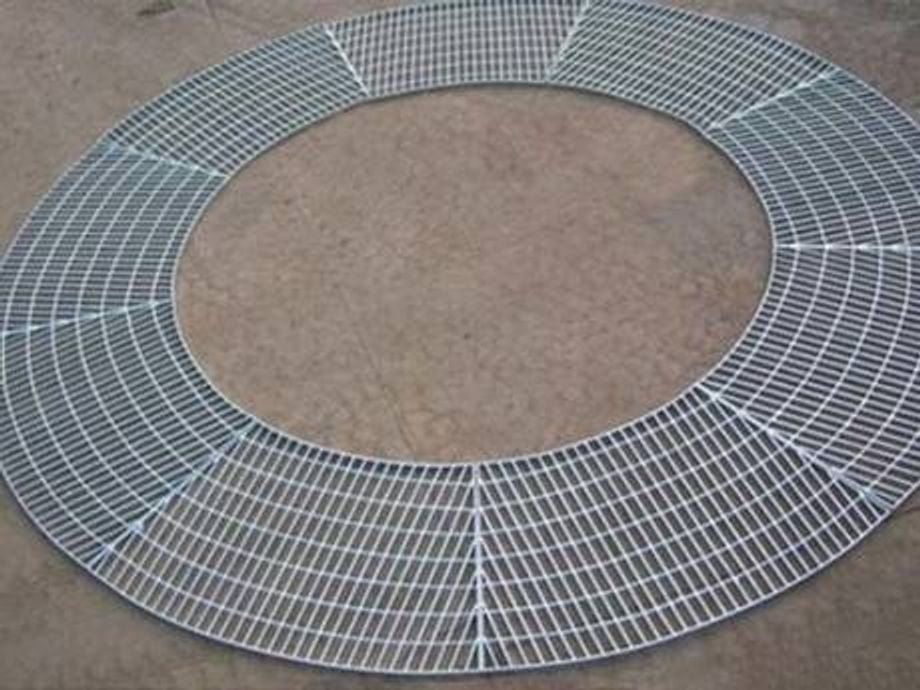

Our irregular steel grating is designed to meet the specific requirements of our customers, offering a wide range of irregular shapes. With its anti-slip surface, high load-bearing capacity, and corrosion resistance, our special shaped steel grating is highly versatile. It finds extensive use in applications such as well covers, industrial operating platforms, and fountain floors.

Specifications for Steel Grating: Materials, Surface Treatment, and Dimensions

• Materials of irregular steel grating: We offer stainless steel or high-quality Q235 carbon steel options for our steel grating.
• Surface Treatment of irregular steel grating: Choose from hot galvanized, cold galvanized, painted, or stainless steel polished and pickled surface finishes.
• Bearing Bar (mm) of irregular steel grating: Available options include 20 × 5, 25 × 3, 25 × 4, 25 × 5, 30 × 3, 30 × 4, 30 × 5, 32 × 3, 32 × 5, 40 × 5, (50..75) × 8, and more.
• Bearing Bar Pitch of irregular steel grating: Our steel grating comes with various bearing bar pitches such as 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65 mm, and more.
• Cross Bar of irregular steel grating: The cross bar dimensions include 5 × 5, 6 × 6, and 8 × 8 mm.
• Cross Bar Pitch of irregular steel grating: Choose from cross bar pitches of 40, 50, 60, 65, 76, 100, 101.6, 120, 130 mm, or as per customer requirements.
